Low Pass EMI EMC filter Metal Case For Energy Storage Systems

Name: Low Pass EMI EMC filter Metal Case For Energy Storage Systems
Brand: VIIP WeiAiPu
Price: 1 USD

Brand Name : VIIP WeiAiPu

Model Number : VIP4-2A-03

Certification : CE ROHS,ISO; TUV

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Type : EMI EMC filter

Application : charging fixture

Line to line : 1760VDC

Rated current : 3A

Temperature range : 25 / 085 / 21

Delivery Time : 5-10 Days for samples

Input Impedance : 500VDC/100MOHM MIN

Frequency Range : 150 kHz to 30 GHz

Storage Temperature : -40℃~+85℃

Item : EMI filter

Operating Frequency : 50/60HZ

Nominal Center Frequency : 50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions : Varies depending on model

Port : Shenzhen

Termination Style : Solder Pins

Rated Current : Different

Weight : 290g-1000g

Insulation Resistance : ≥100MΩ

Rohs Compliant : Yes

Humidity : ≤95%RH

Contact Now

Low Pass EMI EMC Line Filter Metal Case Energy Storage Systems

Quick Detail:

Item	EMC EMI Filter
Model	VIP4-2A-03
Original of country	China
Package Type	Screw Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	3A
Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	available
MOQ	1 PCS
Price	Negotiated
Lead Time	3~20 workdays

Features:

-- high performance AC filters with much better common and differential mode attenuation performance and low frequency filtering effect.

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available

Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. dental equipment

5. Charging post / equipments

6. Electric vehicle

7. Energy storage systems

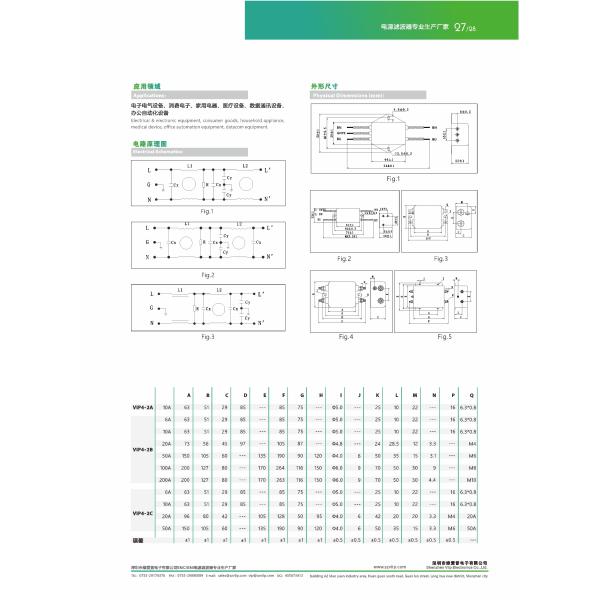

Specifications:
Low Pass EMI EMC filter Metal Case For Energy Storage Systems

Low Pass EMI EMC filter Metal Case For Energy Storage Systems
